Creating a Keycloak instance

This guide covers the deployment of a self-hosted Keycloak service.

To proceed, make sure you have an account in Cleura Cloud, and you are logged in to the Cleura Cloud Management Panel.

Step-by-step deployment

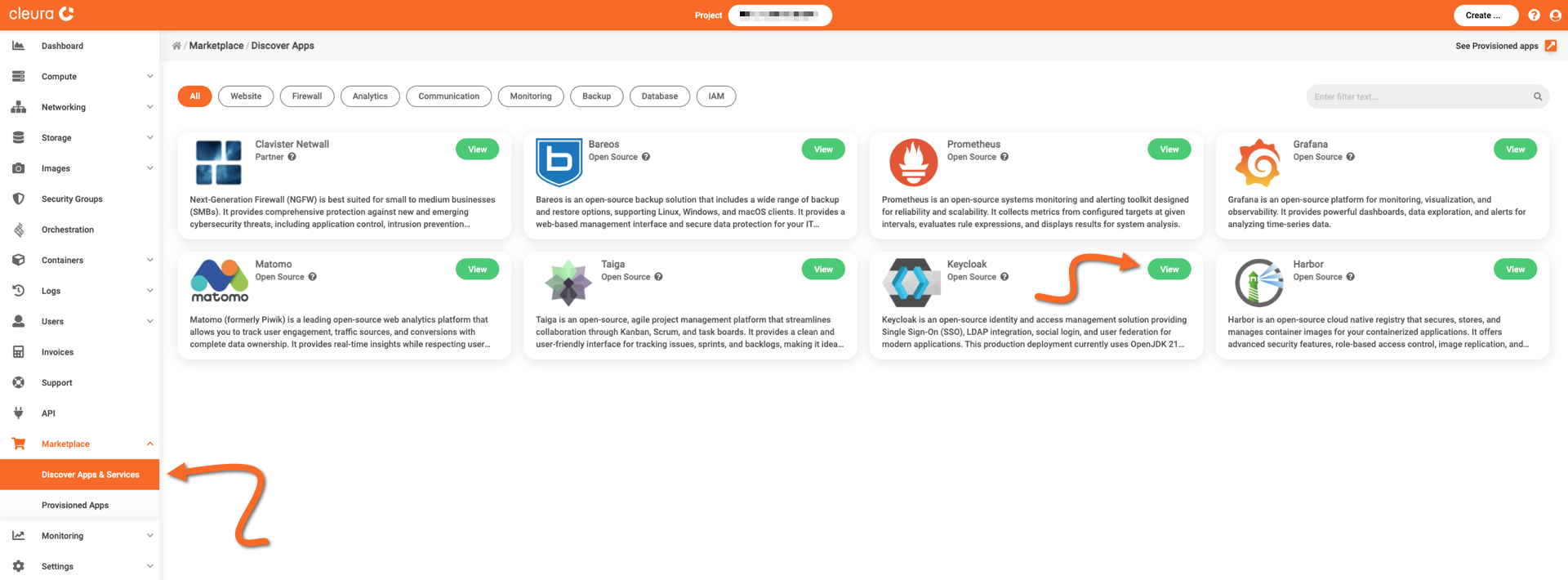

In the left vertical pane of the Cleura Cloud Management Panel, expand the Marketplace category and click on Discover Apps and Services. In the central pane, you will see all available applications and services. Locate the Keycloak box and click the green View button.

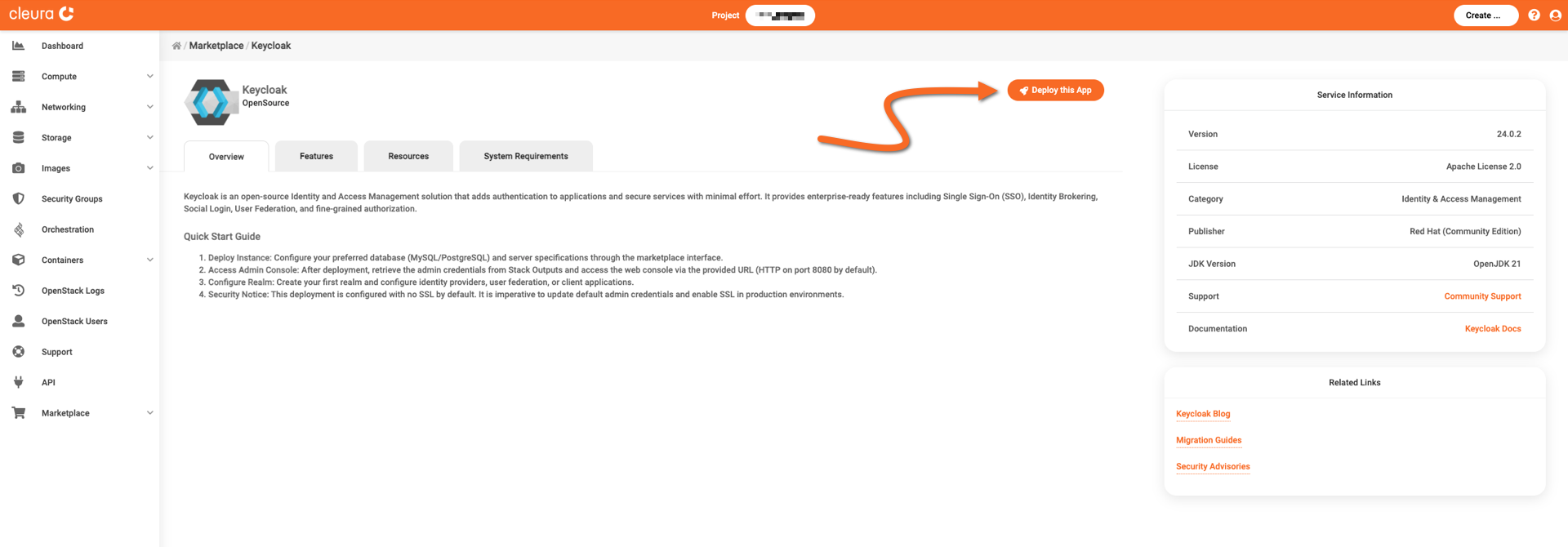

You will see the Keycloak information page, where you can learn more about its features, and obtain pricing information. Click the orange Deploy this App button to start the deployment process.

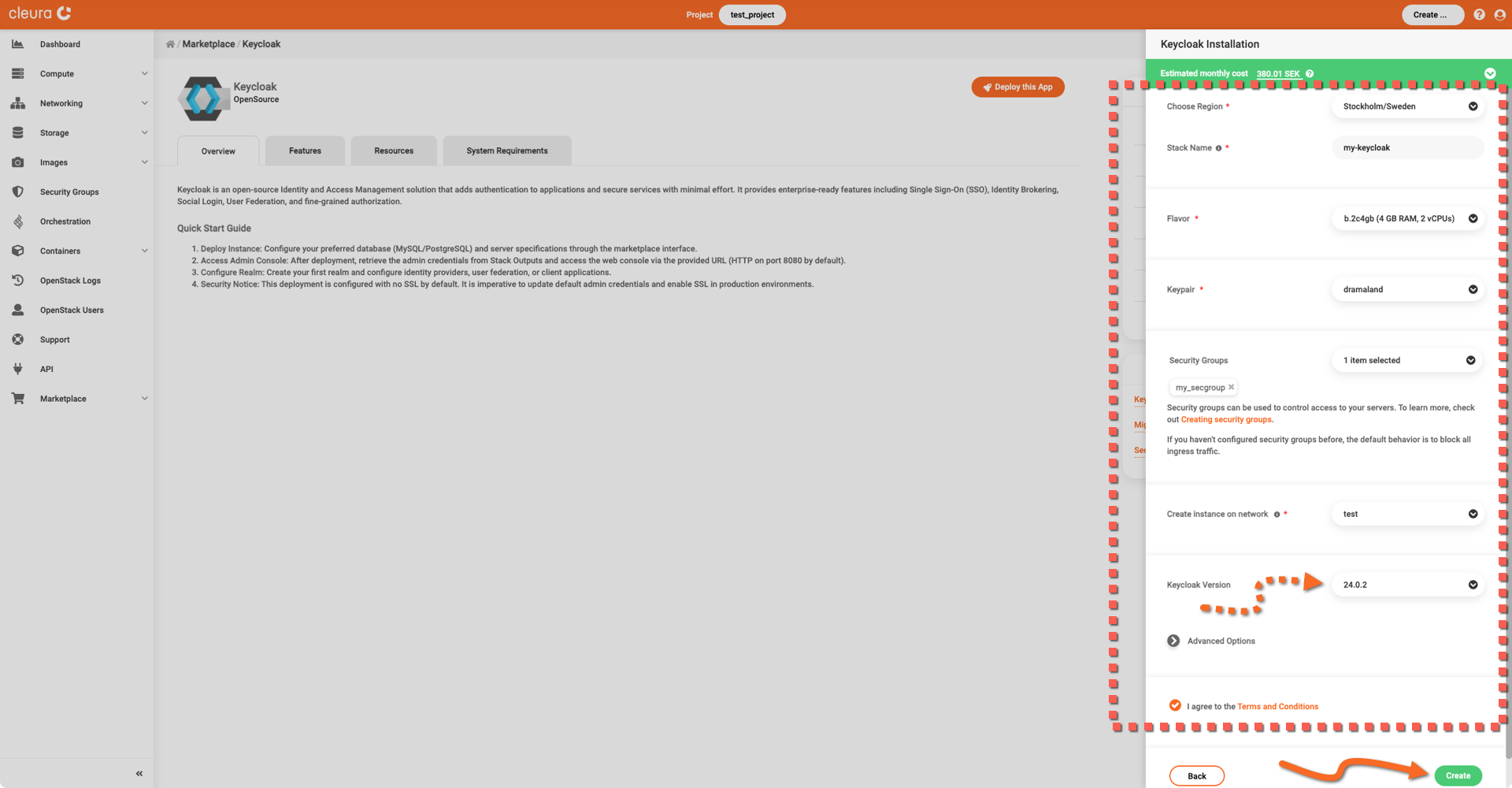

The Keycloak application is hosted on a Nova VM, so now you may select a region, a name, a flavor, a public network, a keypair, and a security group for it. Regarding the security group, make sure it includes a rule allowing incoming TCP connections to port 8080.

Optionally, select one of the available Keycloak versions. Then, read and agree to the Terms and Conditions. When you are ready, click the green Create button.

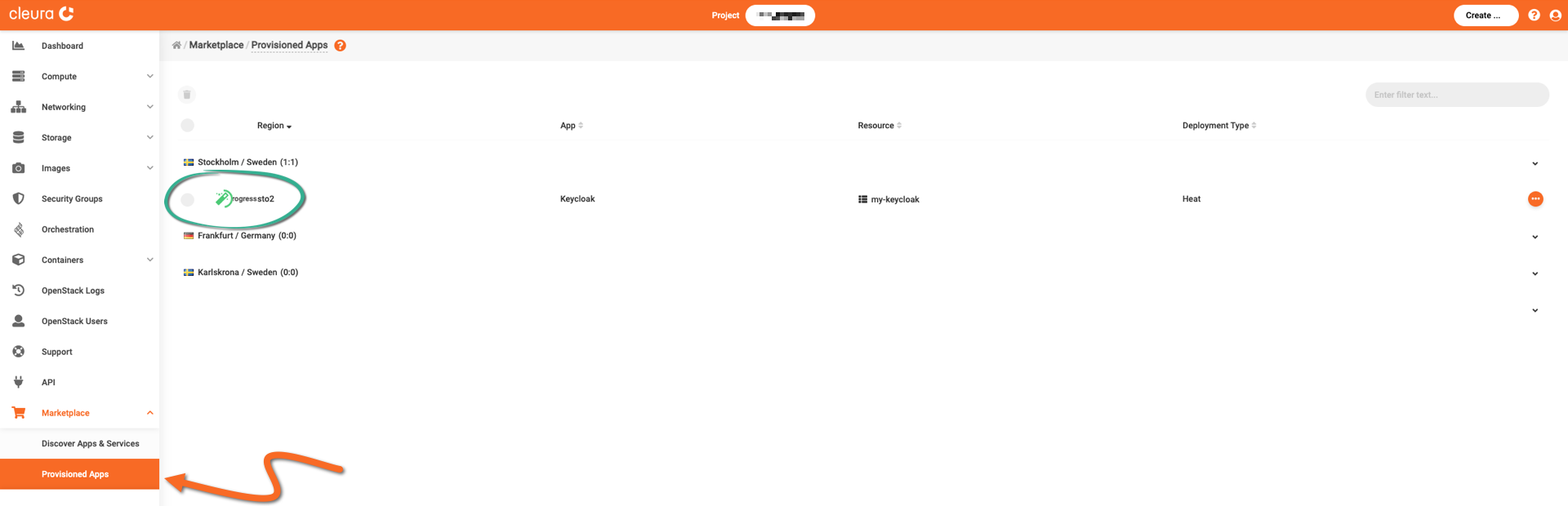

The deployment takes some minutes to complete. To check how it is going, expand the Marketplace category in the vertical pane on the left and click Provisioned Apps. In the central pane, watch the Keycloak Heat stack row. The animated icon at the left marks the deployment progress.

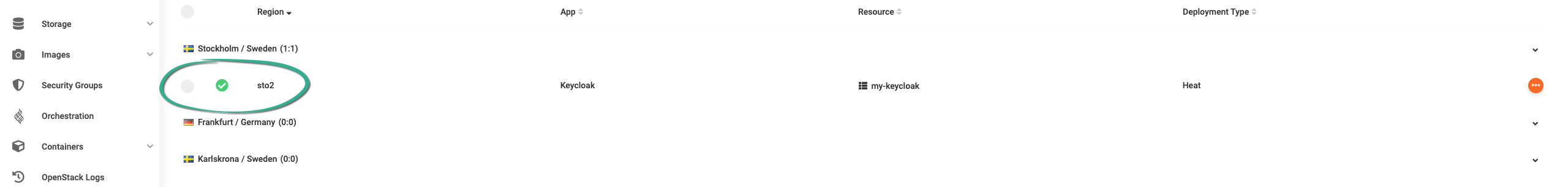

When the deployment is complete, you will see a white check mark in a green circle.

Logging into the Keycloak dashboard

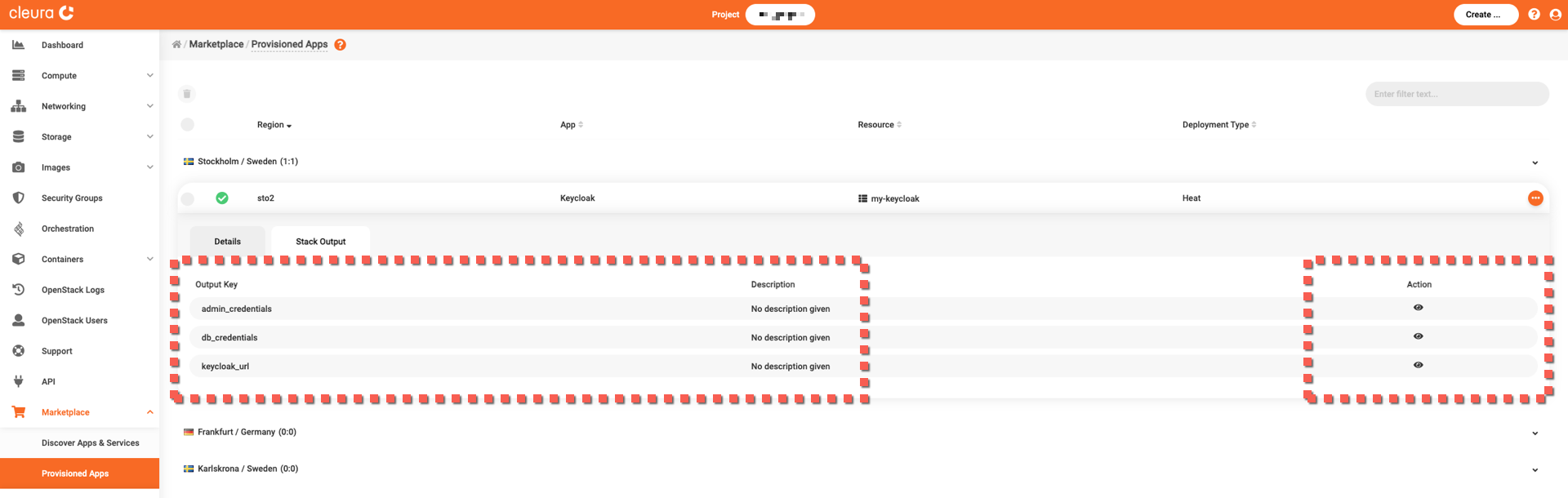

You need the administrator’s (admin) predefined password and the URL of your Keycloak instance. For that, make sure you are in the Provisioned Apps pane. Click on the Keycloak row to expand it, and select the Stack Output tab.

We recommend you create a new entry in your password manager and populate all necessary fields with values from the corresponding output keys.

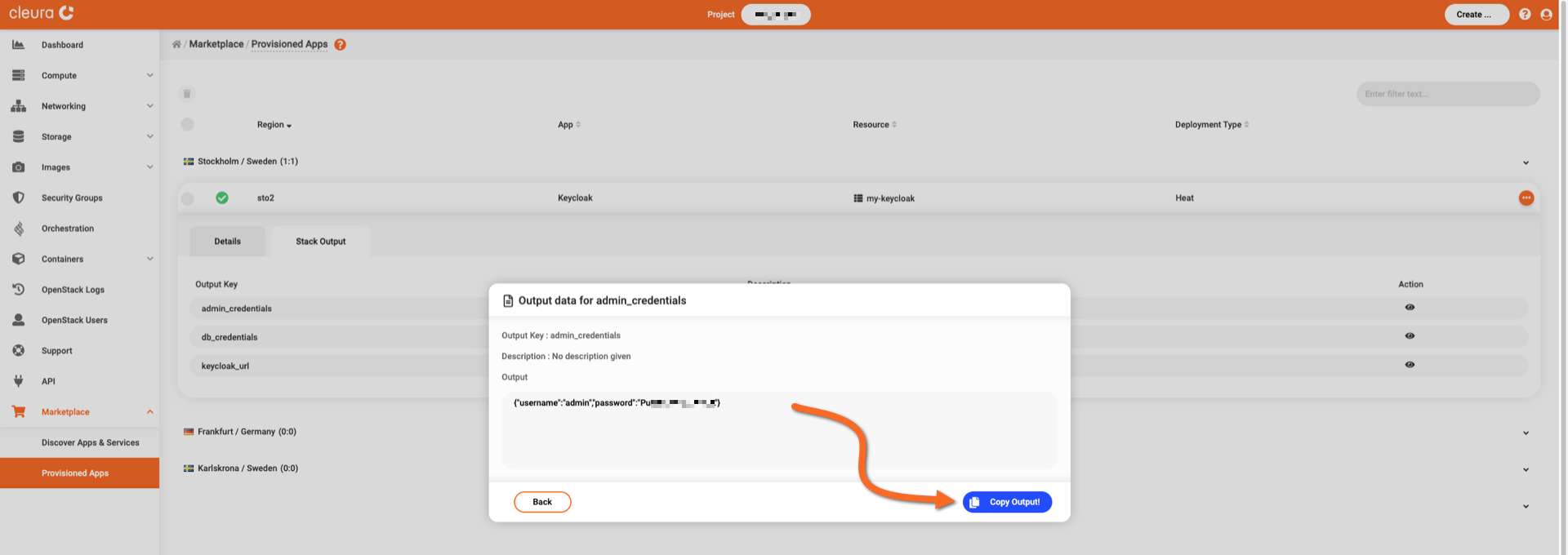

For the preset password, click the icon in the Action column of the admin_credentials row. A pop-up window appears. Click the blue Copy Output! button to copy all data below Output into the clipboard. Temporarily paste that data into a text editor, and use the password for your password manager entry. When ready, click the Back button to close the window.

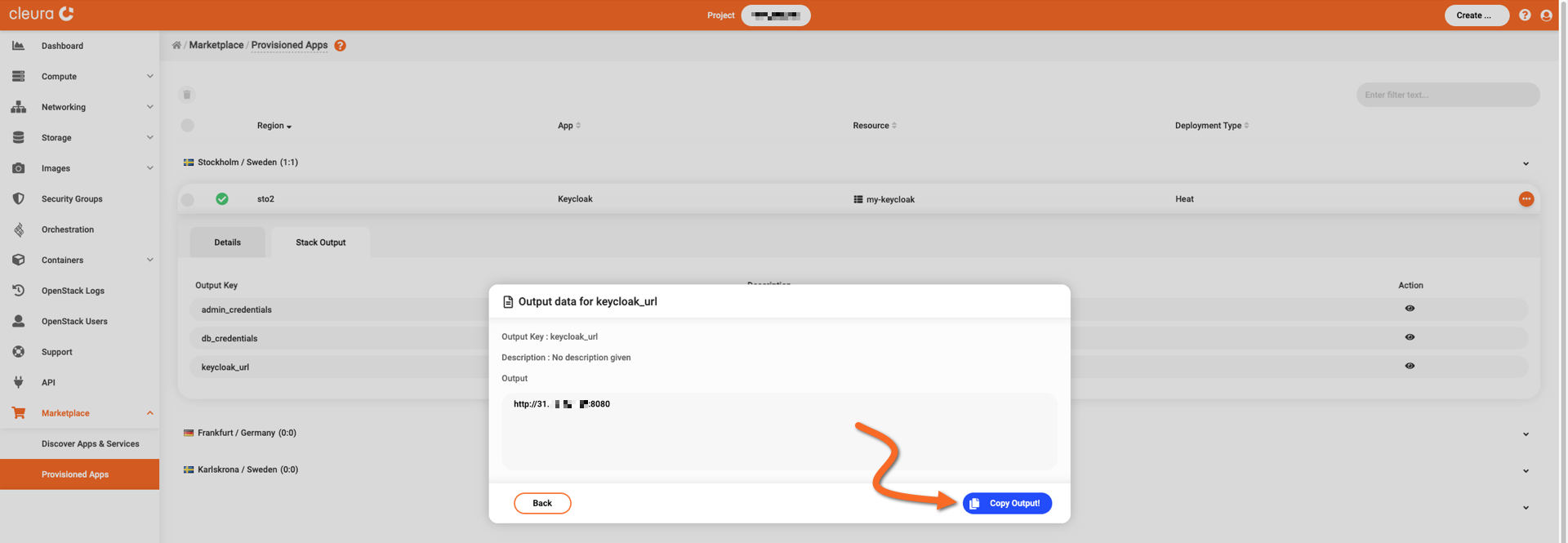

Similarly, get the URL to your Keycloak instance from the keycloak_url row.

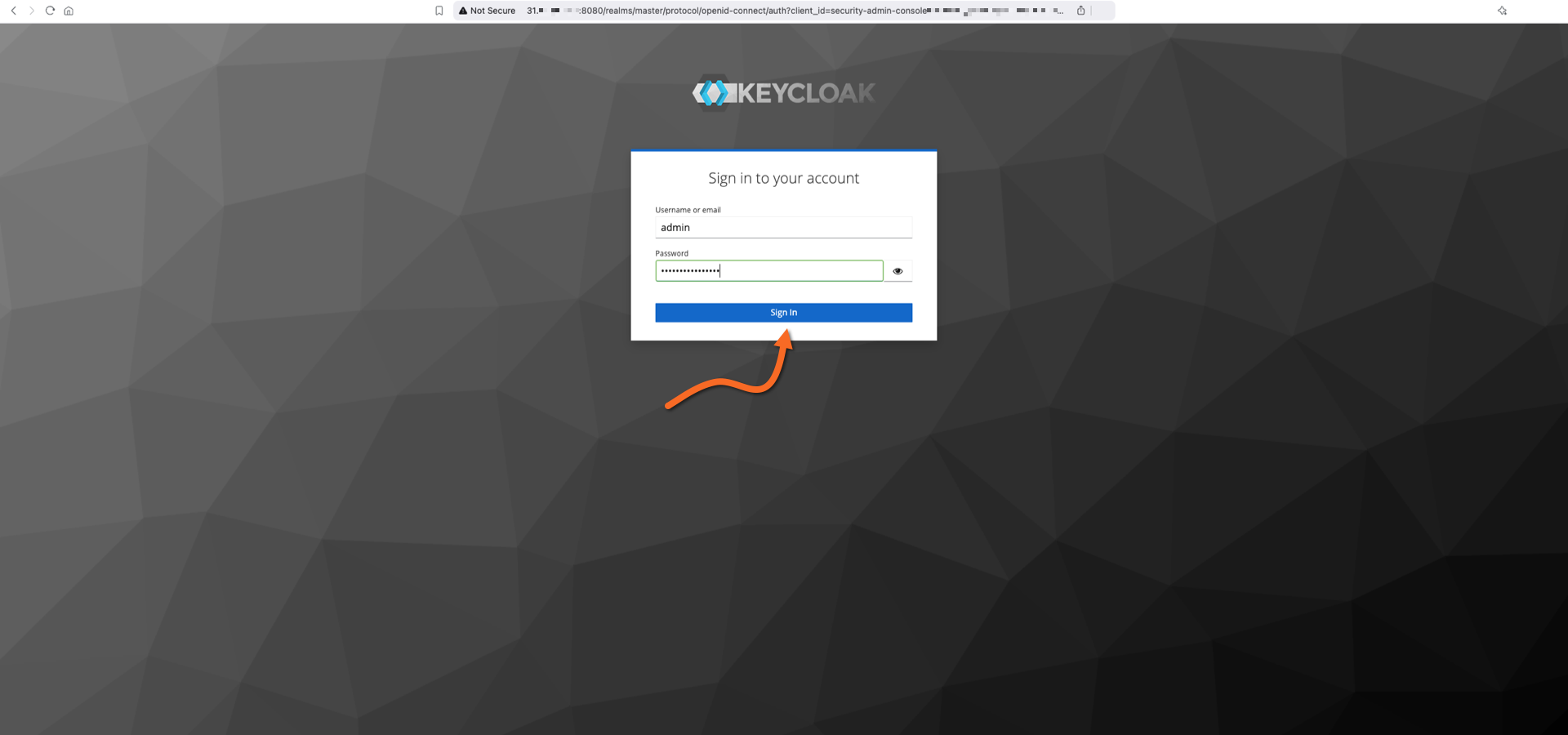

Using your favorite web browser, navigate to your Keycloak deployment’s URL. The Keycloak Sign-in page appears. Use the default username (admin) and password from your password manager, and click the Sign in button.

The Keycloak welcome page appears.

We recommend you start with the official Keycloak guides page to learn how to use your new identity and access management service.
