Creating servers behind a Clavister NetWall instance

Provided you have a Clavister NetWall instance up and running, you may use the Cleura Cloud Management Panel to create a new server and place it behind the firewall.

Creating a new server

You may follow our server creation guide using the Cleura Cloud Management Panel or the OpenStack CLI almost to the letter. You should only pay extra attention to the region the new server will reside in and the network it will be connected to.

More specifically, the new server must be in the region where the Clavister NetWall instance you are interested in resides.

After you type in the new server’s name, choose its region from the drop-down menu named Region.

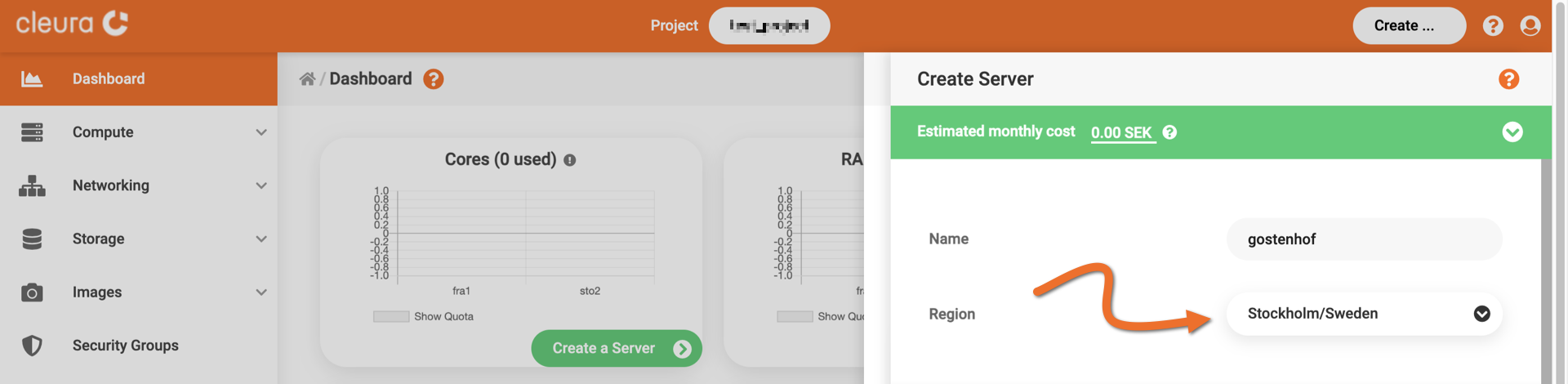

Select a region for the new server

Make sure you have sourced an RC file from the same region the Clavister NetWall instance belongs to.

In addition to residing in the correct region, the server must also be in a network behind the Clavister NetWall instance.

While creating your new server, use the Networks drop-down menu to select a network.

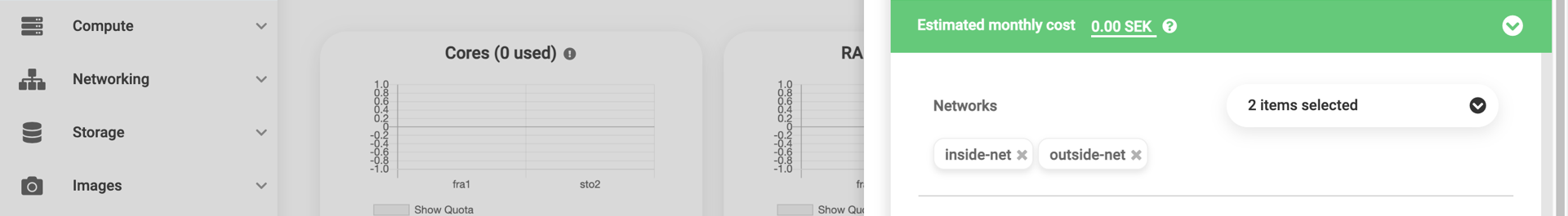

Select a network for the new server

In the openstack CLI client, use the --network parameter to specify a network to which the server will be connected. For instance, here is how to create a server named gostenhof, connected to a network named inside-net, which is behind a Clavister NetWall instance:

openstack server create \
    --flavor b.1c1gb \
    --image "Ubuntu 24.04 Noble Numbat x86_64" \
    --boot-from-volume 20 \
    --network inside-net \
    --security-group default \
    --key-name my-public-key  \
    --wait \
    gostenhof

Getting network connectivity information

Make sure the vertical pane on the left-hand side of the page is expanded. From it, select Compute, then Servers. In the central pane, select the region in which your new server resides. Click on the server row to expand it, and go to the Addresses tab.

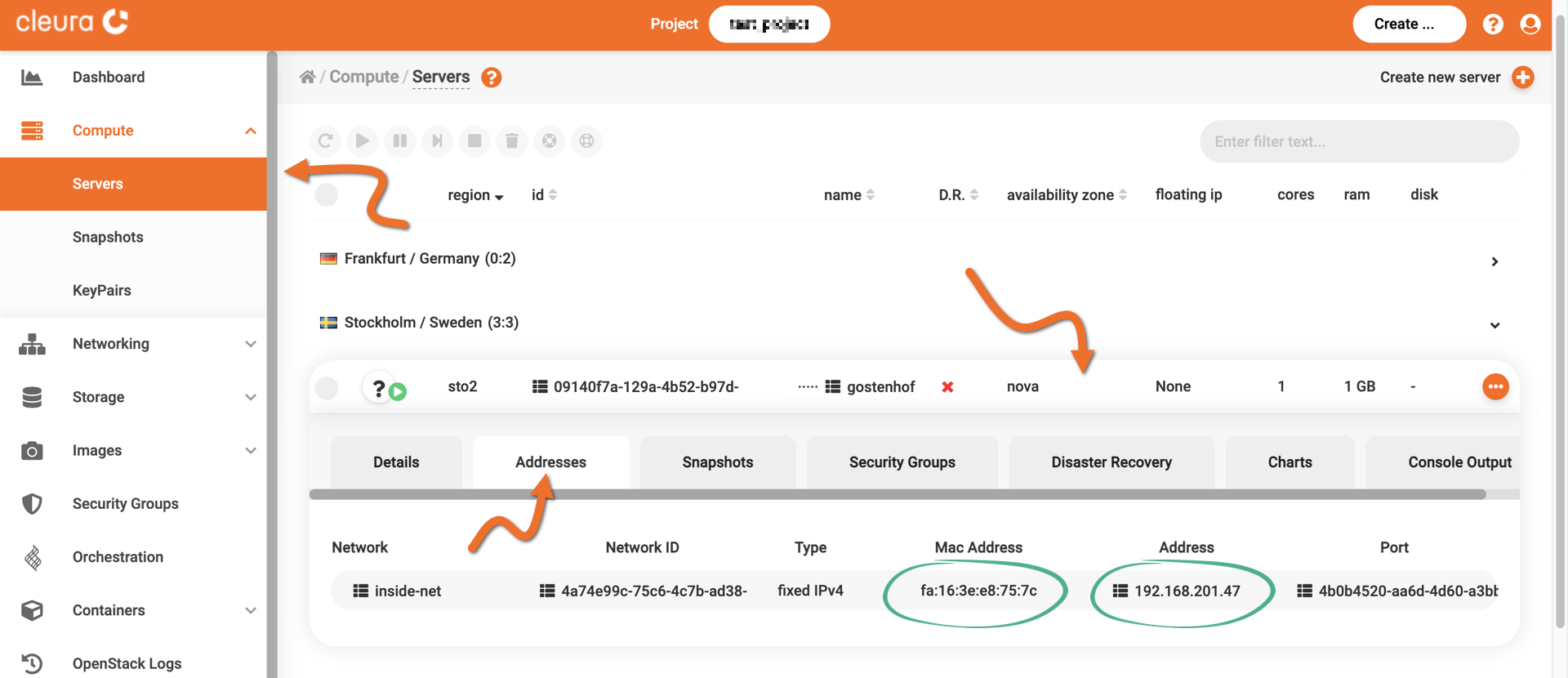

View server connectivity information

There, you can see the server’s IP address. You might also want to jot down the corresponding MAC address.

To get the IP of the gostenhof server, type:

$ openstack server show gostenhof -c addresses
+-----------+---------------------------+
| Field     | Value                     |
+-----------+---------------------------+
| addresses | inside-net=192.168.201.47 |
+-----------+---------------------------+

Also, you may want to take note of the server’s network adapter MAC address:

$ openstack port list --server gostenhof -c 'MAC Address' -c Status
+-------------------+--------+
| MAC Address       | Status |
+-------------------+--------+
| fa:16:3e:e8:75:7c | ACTIVE |
+-------------------+--------+

Viewing the new server from the Clavister NetWall dashboard

Login to the Clavister NetWall instance. From the left-hand side vertical pane, make sure you have expanded the Run-time Information category. Go to the SUB SYSTEMS sub-category and select Neighbor Devices. The firewall has two network interfaces: if1 is the external interface, and if2 is the internal interface, which any server behind the firewall faces.

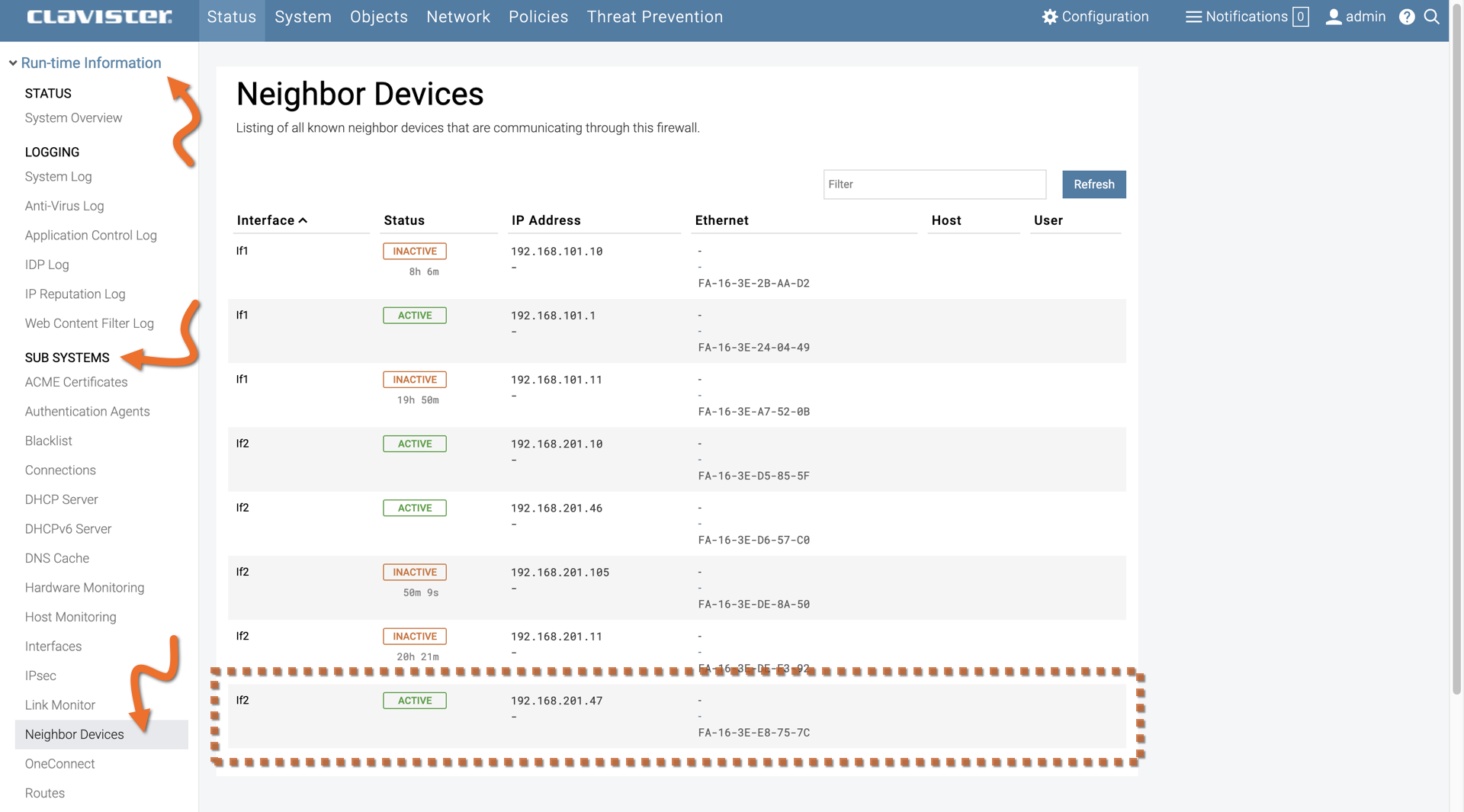

View Clavister NetWall neighbor devices

You will notice the IP address of the new server you just spun up and its network adapter MAC address. Finally, in the Status column, there is a green box labeled ACTIVE, indicating that the server is accessible to the firewall.
